The Deutsch DT Series kit features various plugs and receptacles for 2, 3, 4, 6, 8 and 12 cavity arrangements with contact size 16 (13 amps), as well as wedgelocks to assure contact alignment and retention.

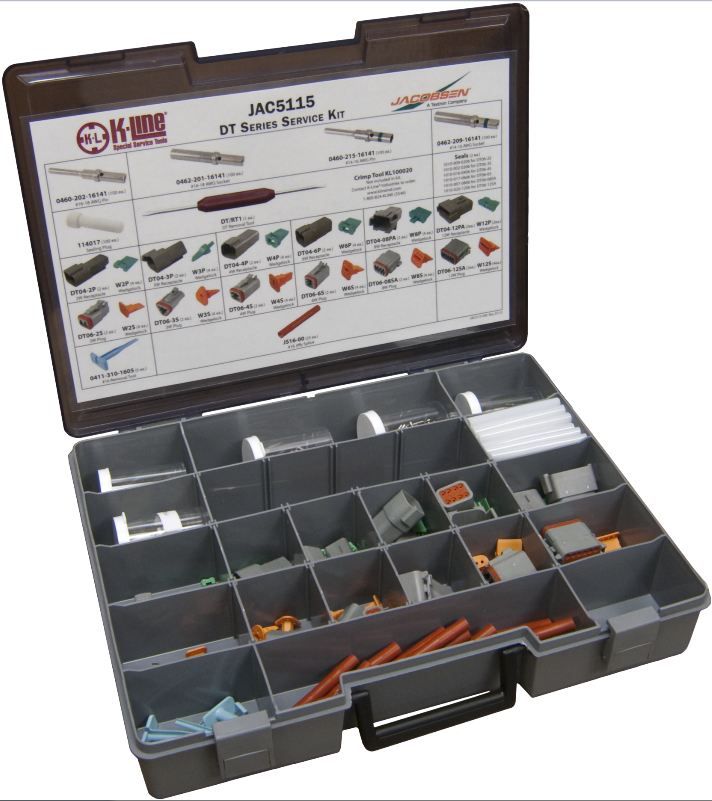

Deutsch DT Connectors: Proven Reliability - Introducting the JAC5115 Kit
Deutsch’s DT Series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, rectangular, thermoplastic housing and integrated latch for mating. The DT Series kit features various plugs and receptacles for 2, 3, 4, 6, 8 and 12 cavity arrangements with contact size 16 (13 amps), as well as wedgelocks to assure contact alignment and retention. The kit also includes 14-16 AWG and 16-18 AWG pins and sockets, seals, jiffy splices, and removal tools.
ALSO AVAILABLE:
KIT CONTENTS:
Part # | Description | QTY |
0460-202-16141 | #16-18 AWG PIN | 100 |
0462-201-16141 | #16-18 AWG SOCKET | 100 |
0460-215-16141 | #14-16 AWG PIN | 100 |
0462-209-16141 | #14-16 AWG SOCKET | 100 |
114017 | SEALING PLUG | 100 |
1010-009-0206 | SEALS (FOR DT06-2S) | 2 |
1010-002-0306 | SEALS (FOR DT06-3S) | 2 |
1010-016-0406 | SEALS (FOR DT06-4S) | 2 |
1010-017-0606 | SEALS (FOR DT06-6S) | 2 |
1010-007-0806 | SEALS (FOR DT06-08SA) | 2 |
1010-020-1206 | SEALS (FOR DT06-12SA) | 2 |
DT04-2P | 2W RECEPTACLE | 2 |
W2P | WEDGELOCK | 4 |
DT04-3P | 3W RECEPTACLE | 2 |
W3P | WEDGELOCK | 4 |
DT04-4P | 4W RECEPTACLE | 2 |
W4P | WEDGELOCK | 4 |
DT04-6P | 6W RECEPTACLE | 2 |
W6P | WEDGELOCK | 4 |
DT04-08PA | 8W RECEPTACLE | 2 |
W8P | WEDGELOCK | 4 |
DT04-12PA | 12W RECEPTACLE | 2 |
W12P | WEDGELOCK | 2 |
DT06-2S | 2W PLUG | 2 |
W2S | WEDGELOCK | 4 |
DT06-3S | 3W PLUG | 2 |
W3S | WEDGELOCK | 4 |
DT06-4S | 4W PLUG | 2 |
W4S | WEDGELOCK | 4 |
DT06-6S | 6W PLUG | 2 |
W6S | WEDGELOCK | 4 |
DT06-08SA | 8W PLUG | 2 |
W8S | WEDGELOCK | 4 |
DT06-12SA | 12W PLUG | 2 |
W12S | WEDGELOCK | 4 |
0411-310-1605 | #16 REMOVAL TOOL | 5 |
JS16-00 | #16 JIFFY SPLICE | 25 |
DT/RT1 | DT REMOVAL TOOL | 1 |
SKU | JAC5115 |
---|---|
Service Bulletin | none |
